Factory hot sales low dew point for molsieve moisture absorptiom rotary rotor for desiccant wheel dehumidifier

1 Piece
MOQ
Factory hot sales low dew point for molsieve moisture absorptiom rotary rotor for desiccant wheel dehumidifier
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Construction works
Condition: New, new
Voltage: 380V, 220V /380V
Power: 80-1300W
Dimension(L*W*H): L*W*H
Weight: 3-800kgs, different
Warranty: 1 Year
After-sales Service Provided: Online support
Certificación: CE
Name: moisture absorptiom rotor
Color: dark blue
Function: dehumidification
Main Material: silica gel or molecular sieve
Lead time: according to customer's quantity
Size: different
Packing: MDF box
Información básica
Certificación: CE
Pago y Envío Términos
Packaging Details: moisture absorptiom rotor package: polyfoam+MDF box
Supply Ability: 10000 Piece/Pieces per Year moisture absorptiom rotor capacity
Descripción de producto

hot sales low dew point molsieve rotary moisture absorptiom rotor for desiccant wheel dehumidifier

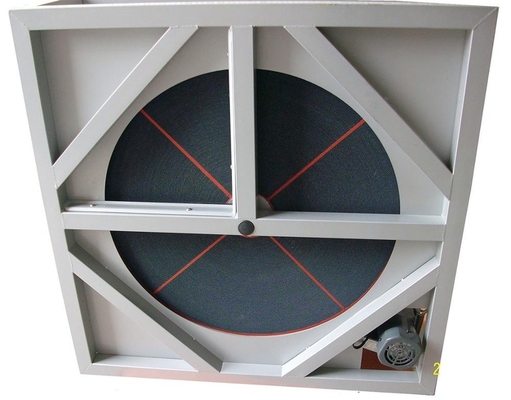

Moisture Absorptiom Rotor

The desiccant rotor is a high capacity desiccant media captivated in a perimeter band with radial spokes. The spokes attach to a central hub with integral sealed ball bearings. The sealed bearings ride on a solid center shaft with spacer plates attached to the cassette structure with shoulder screws.

Hodream Moisture Absorptiom Rotor Properties

Materia Composition: Hodream silica gel desiccant rotor has a very high 82% acttive silica gel content and only 15% glass fibre content, the remaining 3% is the acrylic surface coating.

Technical Propertise: there is no limit for how high relative humidity the rotor can stand as long as droplets are not introduced into the rotor during operation. The Hodream rotor can be washed in water with weak non-alkaline detergent, after saturation in humid air.

Physical Properties: the density of dry material is approx 300kgs/cubic meter. The Hodream media can pick up approx. 39.5% of it’s dry weight as moisture in humid environment. The surface compression strength of the rotor is more than 200Kpa.

Diameter mm

Depth mm

Shaft Diameter mm

Delivered Knock-down

500 - 600

50, 100, 200

20

No.

650 - 1050

100, 200, 400

20

No.

1150 - 2000

200, 400

30

Can

2200 - 5000

200, 400

40

Yes

We can produce rotor size according to customer’s request.

special small silica gel desiccant rotor for household dehumidifier

Diameter mm

Depth mm

Shaft Diameter mm

Delivered Knock-down

190 - 400

30, 50, 100

0-20

No.

We can produce rotor size according to customer’s request.

Hodream Molecular Sieve Desiccant Rotor (Desiccant Molsieve Rotor) Properties

Materia Composition: Hodream molecular sieve desiccant rotor has a very high 38% molecular sieve content, 45% acttive silica gel content and only 15% glass fibre content, the remaining 2% is the acrylic surface coating.

Technical Propertise: there is no limit for how high relative humidity the rotor can stand as long as droplets are not introduced into the rotor during operation. The Hodream rotor can be washed in water with weak non-alkaline detergent, after saturation in humid air.

Physical Properties: the density of dry material is approx 310kgs/cubic meter. The Hodream media is designed to have its maximum capacity at low moisture content in the air or when the entering air is hot. The surface compression strength of the rotor is more than 200Kpa.

Diameter mm

Depth mm

Shaft Diameter mm

Delivered Knock-down

500 - 600

50, 100, 200

20

No.

650 - 1050

100, 200, 400

20

No.

1150 - 2000

200, 400

30

Can

2200 - 5000

200, 400

40

Yes

We can produce rotor size according to customer’s request.

Hodream Silica Gel Desiccant Rotor and Molecular Sieve Desiccant Rotor have the below Features

1. high competence and reliability.

2. CNC fabricated unit and have powder coated finishing

3. hard face finish on rotor`s edge ensures long life.

4. coating helps good sealing for media and seals.

5. appropriate for electrical, steam, thermal fluid.

6. excellent moisture removal capacity at relatively economical energy.

7. rotor frame complete set at perimeter for industrial quality and durability.

8. rotor is non-flammable.

9. comfortable to all major components.

10. durable for continuous hassle free operation.

11. easy serviceability and operation without any maintenance.

12. water washable, and are quick and easy to service.

13. made of alternate flat and corrugated inorganic fiber of very uniform pitch and height.

14. available in non-standard sizes

15. Honeycomb cell height: 1.8-3.4mm, low height can Increased absorption area

Application of Moisture Absorptiom Rotor

. Schools, universities, dormitories;

. Offices, condominiums, apartments;

. Smoking lounges, casinos;

. Hospitals, nursing homes, day care centers;

. Hotels, motels, department stores;

. Clean rooms, circuit board, chip manufacturing;

. Breweries;

. Swimming pools, sports arenas;

. Convention centers, airports, prisons;

. Bus and train maintenance facilities;

. Welding, foundry, casting areas;

. Printing operations;

. All humidity controlled spaces; and

. Product drying operations.

Operation Diagram of Moisture Absorptiom Rotor Dehumidifier (Unit)

Moisture Absorptiom Rotor can be used at Dehumidifier or Dehumidifier Unit
